Rotary Unions 4 Passages with 12 Circuits 2A
Product Description:
Features:
- Extensive Applicability: The Rotary Unions find extensive utility across a wide spectrum of industries encompassing manufacturing, automotive, packaging, printing, and beyond. This adaptability positions the product as a versatile and indispensable solution for diverse fluid transfer needs.
- Low Maintenance: The Rotary Unions, characterized by their premium construction and dependable sealing, necessitate minimal maintenance. This attribute translates into reduced downtime and heightened operational continuity, thereby optimizing productivity.
- Temperature and Pressure Resilience: The Rotary Unions are engineered to withstand a broad range of temperatures and pressures, thereby ensuring their suitability for deployment in diverse operating environments. This attribute endows the product with adaptability across various fluid transfer applications.
Typical Application:
- Pneumatic Tools: The Rotary Unions finds extensive use in pneumatic tool applications, such as pneumatic drills, grinders, impact wrenches, and sanders. It enables the seamless transmission of compressed air and electrical signals required for tool operation, ensuring efficient and reliable performance.
- Automated Assembly Lines: In automated assembly lines, the Rotary Unions facilitates the transmission of compressed air and electrical signals to pneumatic actuators and electrical components. This enables precise control of robotic arms, conveyors, and other automated machinery, enhancing production efficiency and accuracy.
- Packaging Machinery: The product is widely employed in packaging machinery, including filling machines, sealing machines, and labeling equipment. It enables the transmission of pneumatic signals for actuating pneumatic cylinders and electrical signals for controlling motors, sensors, and other electrical components, ensuring smooth and synchronized operation.
Specifications:
| Electrical& Electronics |
| NO.of Circuits | 12 / 2A |
| Lead Wire Size | AWG26#Teflon Insulated |
| Voltage | 240VAC/DC |
| Insulation Resistance | ≥300MΩ/300VDC |
| Dynamic Contact Resistance | ≤35MΩ |
| Mechanical Parameter |
| Lead Length | Stator:250mm Rotor :250mm |
| Working Speed | 0~100RPM |
| Working Humidity | ≤ 70%RH |
| Working Temperature | -30℃～+80℃ |
| Precious Metal | Precious Metal |
| Housing Material | Engineering Plastics/ Metals(optional) |
| Pneumatic Parameter |
| Passages | 4 |
| Connection Thread Size | G1/8" |
| Pressure | -100Kpa~1Mpa |
| Transmitting media | Compressed Air |
| Rotating Speed | 0~100RPM |
| Working Temperature | -30℃～+80℃ |

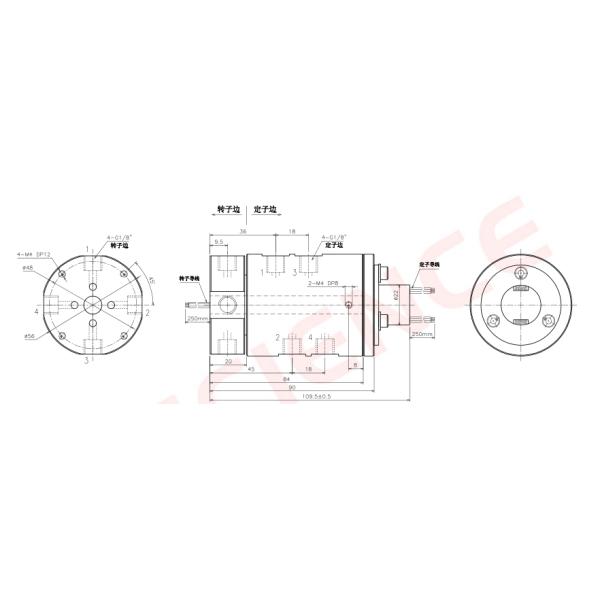

Drawing for HK56-0401-P1202:
FAQ:
Can Rotary Unions be used in wind turbine applications?
Yes, Rotary Unions are commonly used in wind turbine applications to transfer hydraulic oil or coolant for blade pitch control, yaw control, or generator cooling.
Can Rotary Unions be used in rotary indexing tables?
Yes, Rotary Unions are frequently used in rotary indexing tables to transfer fluids for various processes, such as clamping, cooling, lubrication, or part ejection.
Can Rotary Unions be used in machine tool applications?
Packaging Machinery: The product is widely employed in packaging machinery, including filling machines, sealing machines, and labeling equipment. It enables the transmission of pneumatic signals for actuating pneumatic cylinders and electrical signals for controlling motors, sensors, and other electrical components, ensuring smooth and synchronized operation.
